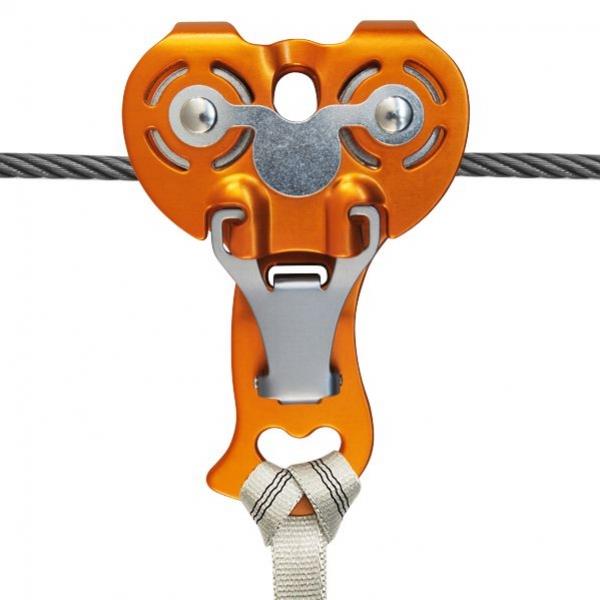

Pulley for ropeway with safety locking system

double pulley | integrated connector

Evolution of the first pulley with an integrated connector which eliminates any possibility of error.

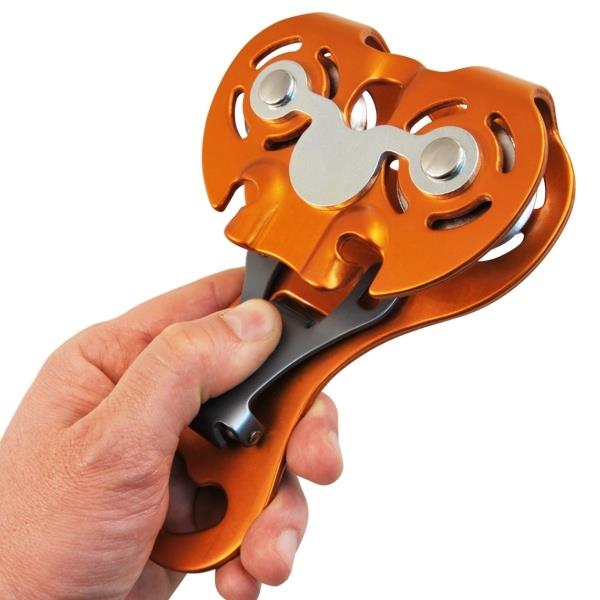

Improved handle ergonomics and simplicity of use thanks to the new lever which can be opened with one hand.
The special design ensures correct positioning on the rope in any situation.
Equipped with ball bearings for perfect smooth rolling.
It works on both ropes and metal cables up to 13 mm in diameter.

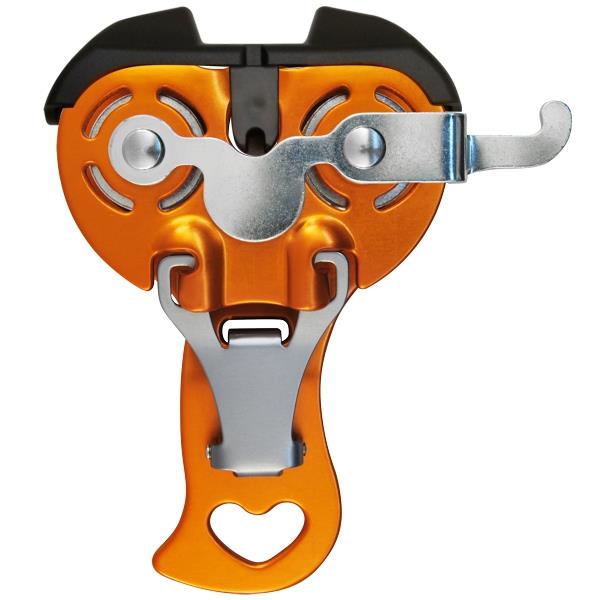

Available ZIP EVO HOOK version, with a hook for hanging connectors, avoiding the wear caused by allowing the connectors to slide along the metal cable (#82605O402KK).

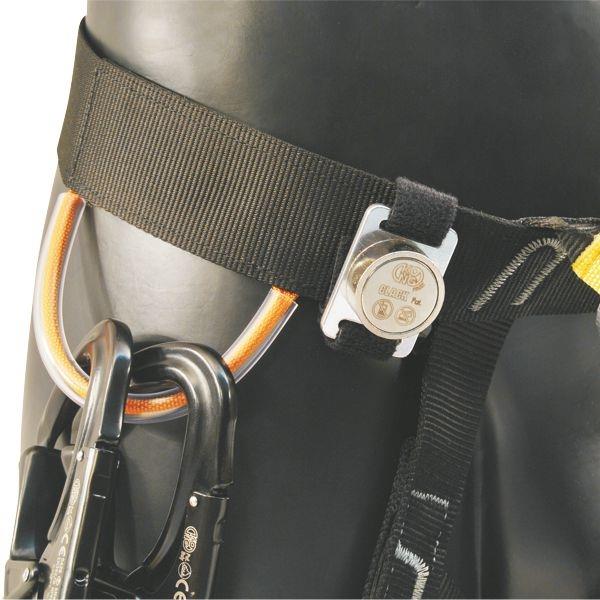

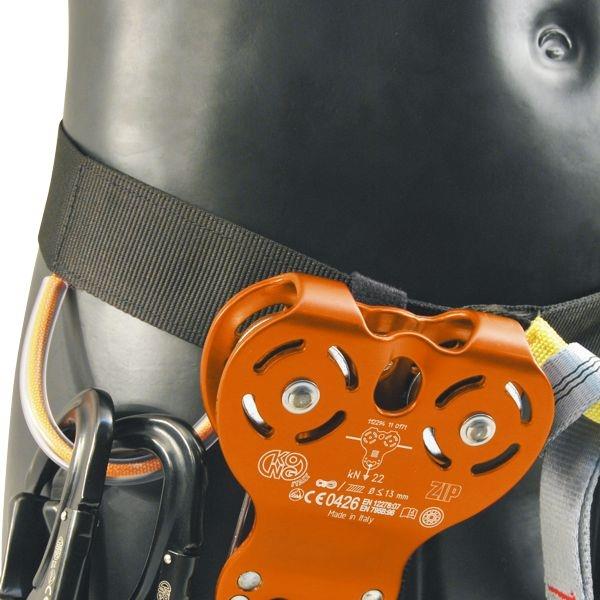

It can be carried on the harness using the ingenious Clack magnetic system (#223000000KK).

High quality product, made in Italy!
Patented.

Conform to the requirements of the norm EN 17109, it is usable as a category A mobile connecting device.
It integrates perfectly into the Coudou Pro ZAZA series.

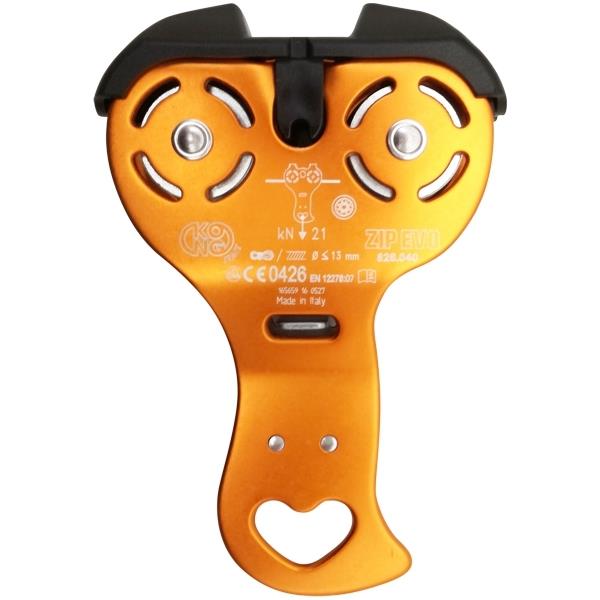

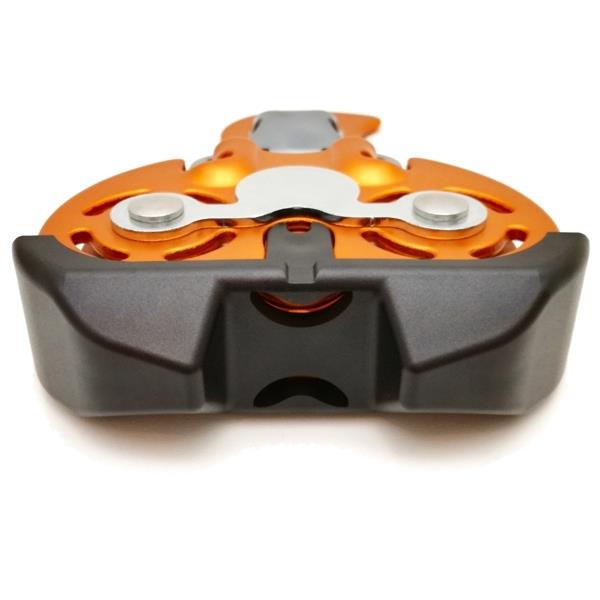

ZIP CAP #826060000KK Top protection that prevents the inadvertent introduction of fingers into the rotating elements of the pulleys (as required by the norm EN 17109), standard supplied!

Lifetime and Inspections

Usage activities

Item codes

ItemBody materialWheel materialEfficiency (%)Load (kN)Ball BearingBushColorMain dimension (mm)Max rope diameter (mm)Notes
82604O401KK82604O401KK EN 12278
EN 17109
Alu alloy
Steel
9544022 (5000 lbs)Yes
No
Orange
17013Zip Evo
82605O402KK82605O402KK EN 12278
EN 17109
Alu alloy
Steel
9547022 (5000 lbs)Yes
No
Orange
17013Zip Evo Hook
